Round Tapered Electrical Power Pole 132kv Power Transmission Tower
WE ARE MANUFACTURER SINCE 1992
Experience: Our company was set up in 1992, having over 24 years of production experience in galvanized garden light poles.
Production Capacity: We manufacture galvanized garden light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized garden light poles we carry on vertical production to get good control of quality and cost
We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line
| Material
| Q345B high quality mild steel
|
| Mounting Height
| 3-55m |
|
Shape of Pole
| Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
|
| Brackets
| Single or double brackets are in the shape and dimension as per customers requirement
|
|
Welding
| Welding confirms with international welding standard of CWB
|
| Base plate mounted
| Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
|
| Ground mounted
| The length buried underground as per customers requirement
|
| Galvanizing
| Hot dip galvanization with thickness of 80-100µm average
|
| Powder coating
| Pure polyester powder painting, color is optional
|
| Wind Resistance
| 3-500km/h |
Mechanical Property
The metal supports are designed to withstand the nominal force F and the pressure of the wind V
applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of
the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load
intervened when breaking is around 2 times of design load.
Manufacturer Tolerance
- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1̊ per 3 meters length
- Ovalisation : Maximum is 3%
- The average diameter : +/-0.5%
-Slip length: +/-150mm
The information to inquiry or purchase
- Steel pole height and force
- Cross arm type and length, the position to install in the steel pole
- The method to fix the cross arm (use Bolt to connect or use one or two template to weld in the steel
pole to install the cross arm)
- Safety factor of the steel pole
- Wind speed
- Type of climbing rung
- Destination port
- Others
Our Services
1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Various designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video
Product Tags:
|
|

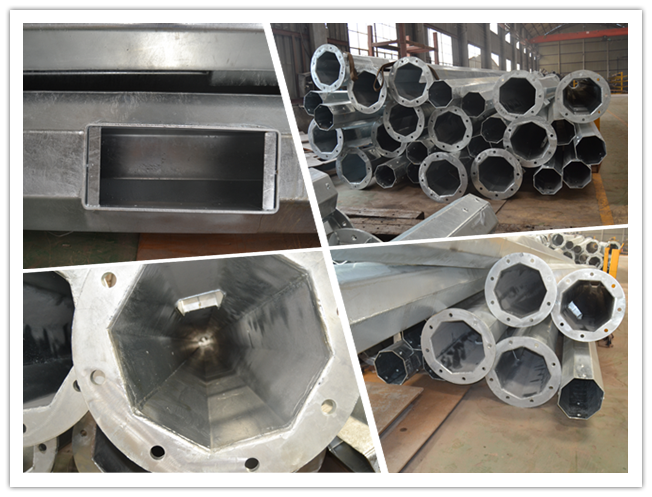

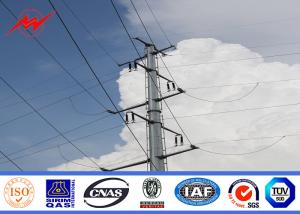

Round Tapered Electrical Power Pole 132kv Power Transmission Tower Images
|
