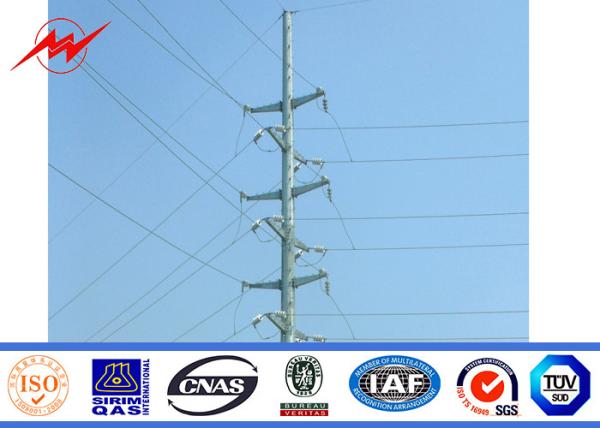

ISO 69 KV Polygonal Electric Power Pole 2 Sections

Brand Name : MilkyWay

Model Number : Electric Power Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : Electric Power Pole

Application : Power Transmission

Galvanization standard : Hot dip galvanization

Lift time : 50 years

Warranty : 15 years

Design : Customized

Standard : ISO

Contact Now

ISO 69 KV Polygonal Electric Power Pole 2 Sections with cross arm

Description:

Our Transmission Pole is designed for the high voltage power transmission and low voltage power transmission.
Designed and manufacutred for durability, corrosion resistance and visual appeal.

ISO 69 KV Polygonal Electric Power Pole 2 Sections

Specifications:

Suit for

Power Transmission

Shape

Conoid ,Multi-pyramidal,polygonal

Design Load in Kg

300~ 1000 Kg applied to 50cm from the to pole

Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

ISO 69 KV Polygonal Electric Power Pole 2 Sections

Packages:

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data

ISO 69 KV Polygonal Electric Power Pole 2 Sections

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.


Product Tags:

69 kv electric power pole



iso electric power pole



2 sections electric power pole


Quality ISO 69 KV Polygonal Electric Power Pole 2 Sections wholesale

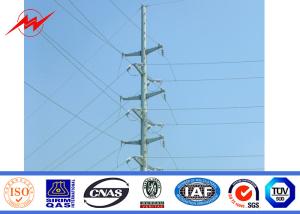

ISO 69 KV Polygonal Electric Power Pole 2 Sections Images
