Medium Voltage 22m Steel Tubular Pole

Name: Medium Voltage 22m Steel Tubular Pole
Brand: milky way
Price: 130 USD

Quality Medium Voltage 22m Steel Tubular Pole wholesale

Brand Name : milky way

Model Number : 69KV

Certification : ISO9001:2015

Place of Origin : JIANGSU,CHINA

MOQ : ONE CONTAINER

Price : USD 130-180POLE

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000POLES/MOUTH

Delivery Time : ALWAYS 20DAYS

Packaging Details : The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo

MATERIAL : yield strength not less than 345mpa

APPLICATION : ELECTRICITY DISTRIBUTION

THICKNESS : 1-10MM

SHAPE : POLYGON

GALVANIZATION : ASTM A123,average coationg not less than 85um

WELDING : AWS D1.1,penetration 100%

LIFETIME : 50 YEARS

WIND SPEED : 160KM/H

ULTIMATE TENSILE STRENGTH : 490-620MPA

Contact Now

Meralco 20m 22m Medium Voltage Steel Tubular Pole For Electrical Line Project

Production Process

Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.

The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.

Specification

Product name	Medium Voltage Steel Tubular Pole For Electrical Line Project
Material	ASTM A572,S355,Q235,Q345,Q360 or equivalent internation standard
Design service	available,just offer design parameter
Certificate	ISO 9001:2015,etc
Destruction test	Available
welding method	CO2 welding or submerged arc auto welding
OEM	Available
Wind pressure	5-300KM/H
Pre-shipment test	Available

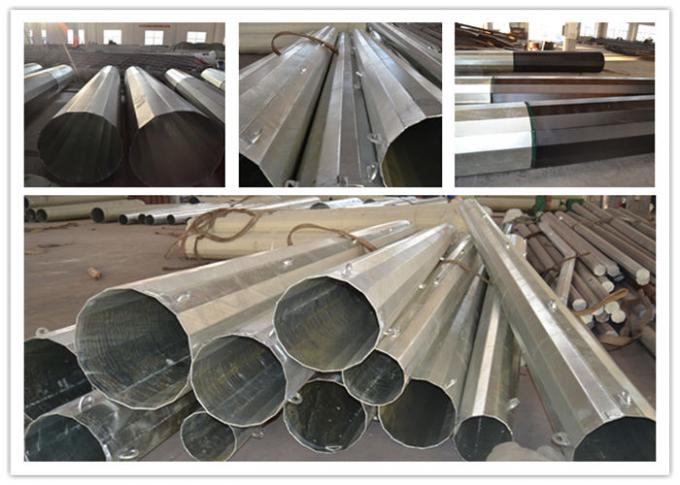

Medium Voltage 22m Steel Tubular Pole

Production process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Package

Features

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.

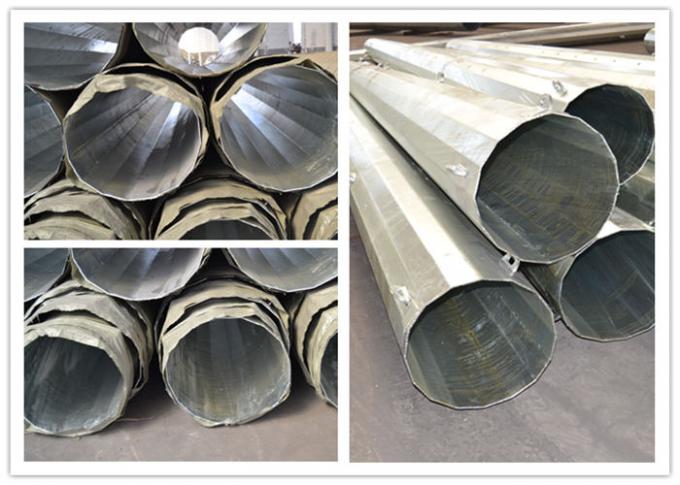

Medium Voltage 22m Steel Tubular Pole
