Plaza Lighting 1000W Painting 80M High Mast Outside Light Pole , BV

Name: Plaza Lighting 1000W Painting 80M High Mast Outside Light Pole BV
Brand: MilkyWay
Price: 1 USD

Quality Plaza Lighting 1000W Painting 80M High Mast Outside Light Pole , BV wholesale

Brand Name : MilkyWay

Model Number : High Mast Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : High Mast Pole

Application : Plaza Lighting

Wind Speed : 160km/h

Galvanization Thickness : Average 86μm

Lamp Luminous Flux(lm) : 100

Flood light : 1000W

Contact Now

1000W Painting 80M High Mast Pole with Winch for Plaza Lighting

Descripition of material:

1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped

vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

Plaza Lighting 1000W Painting 80M High Mast Outside Light Pole , BV

Application:

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

Plaza Lighting 1000W Painting 80M High Mast Outside Light Pole , BV

Specifications:

Height	20m-80m
Max length per section	14 m
Thickness	2.5mm~30 mm
Shape	Conical or polygongal tapered
Material	Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360
Lamp Power	9 W~800 W (HPS/MH)
Electroshock resistant protective grade	Grade Ⅰ
Finish	hot dipgalvanization ,blasting,powder coating ,painting
Galvanization standard	ASTMA 123 / EN ISO 1461
Welding	AWS D 1.1 /BS EN 1011-1,BS EN 1011-2
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Lifting system	Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
Head frame	Our headframe can be designed as per customer requirment to carry camera or industrial antenna.

Lifting System:

A:Single Drum 150/300/600/1000KG
B:Double Drum 800/1000KG
C: Dual Hanger 150/300/600/800/1000KG
D:Double Hoist Main:600/1000KG Sub:150KG

Plaza Lighting 1000W Painting 80M High Mast Outside Light Pole , BV

Product Tags:

high mast lighting pole

Sports Light Poles

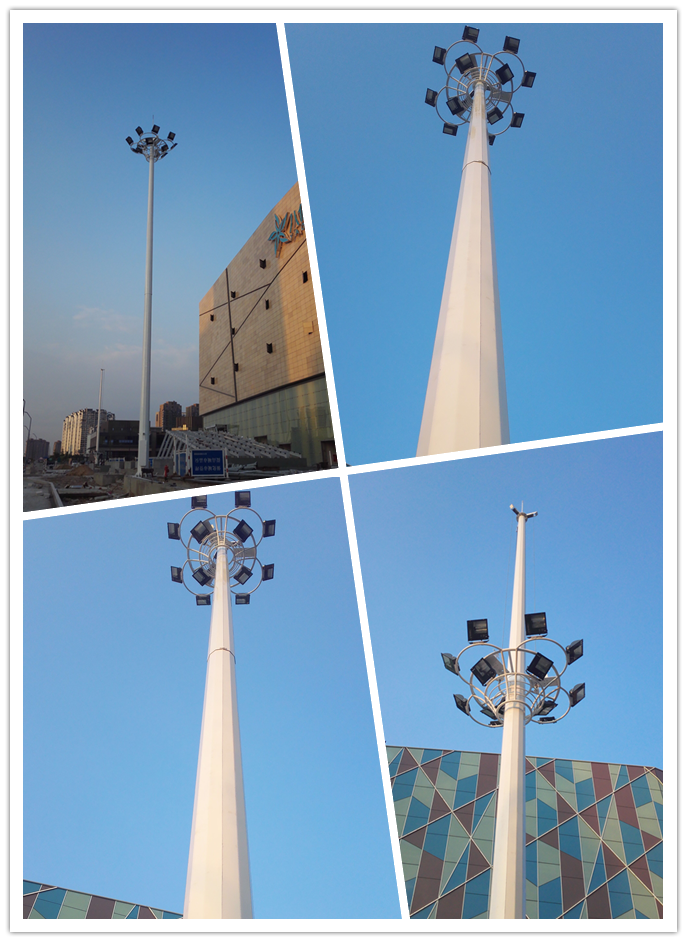

Plaza Lighting 1000W Painting 80M High Mast Outside Light Pole , BV Images
