Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting

Name: Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting
Brand: MilkyWay
Price: 1 USD

Quality Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting wholesale

Brand Name : MilkyWay

Model Number : High Mast Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : High Mast Pole

Application : Plaza Lighting

Surface finish : Depends on the material

Wind Speed : 160KM/H

Shape : Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Power Supply : AC

Contact Now

Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting

Specifications:

Type	high mast pole
Shape	conical, hexagonal and octagonal
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
high mast pole suit for	city square,wharf,stadium
Option of high mast pole	Height from 20m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

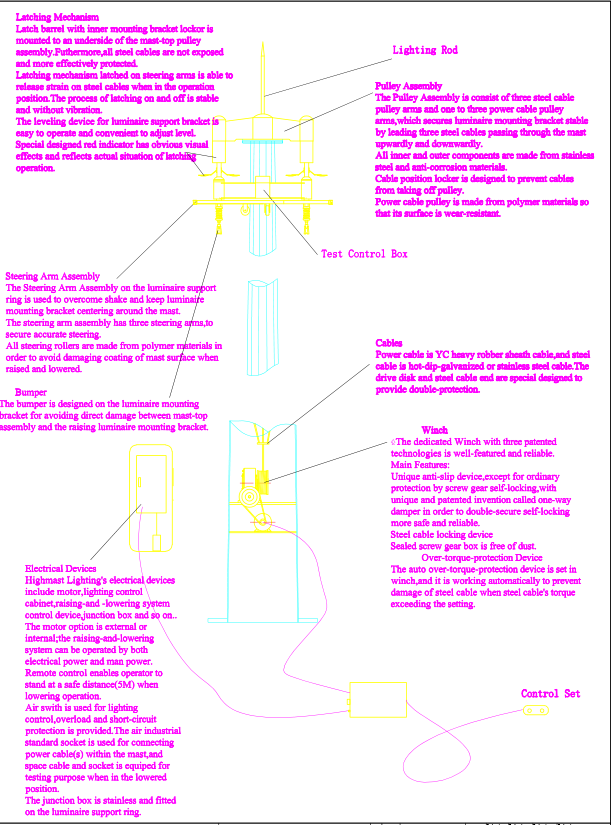

Lifting system
Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly. Furthermore, all steel cables are not exposed and more effectively protected.
Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position. The process of latching on and off is stable and without vibration.
The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.
The leveling device for luminary support bracket is easy to operate and convenient to adjust level.
Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.

Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting

Production Flow:

The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting

More Pictures:

Round Painting 60M High Mast Pole with Lifting System for Plaza Lighting
