NEA 3MM 30FT Steel Utility Pole for 110KV Power Distribution with Bitumen
Description:
Our Transmission Pole is designed for the high voltage power transmission and low voltage power transmission.
Designed and manufacutred for durability, corrosion resistance and visual appeal.
Specifications:
| Surface treatment | Hot dip galvanized Following ASTM A 123,
color polyester power |
| Standard | ISO 9001 |
| Torlance of the dimension | +- 2% |
| Power | 10 KV ~550 KV |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |

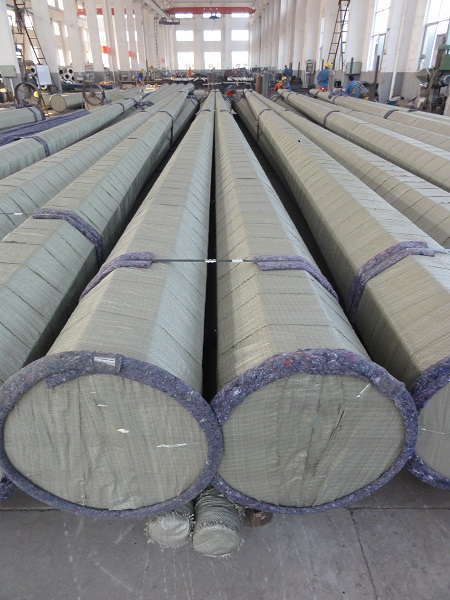

| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data |
Design:
We have our standard pole with our design, OEM and ODM is also accpetable
Packages: Standard seaworthy
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
