2.75127248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1

Product Categories

Jiangsu milky way steel poles co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

2.75127248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1

Name: 27512724810670mm Gr345 Mpa HDG Steel Power Pole Monopoles With AWS D11
Brand: Milky Way- HDG steel power poles ,monopoles
Price: 1 USD

Quality 2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1 wholesale

Brand Name : Milky Way- HDG steel power poles ,monopoles

Model Number : Steel Power Pole 12M high Q345

Certification : /BV/ISO

Place of Origin : China

MOQ : one 40HQ

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 300 pieces pole per day

Delivery Time : 8

Packaging Details : as per customer request

Welding Standard : AWS ( American Welding Society ) D 1.1 with penatration rate no less than 80%-100%

Tolerance : +/-2%

Product Name : 2.75*127*248*10670mm Gr,345 mpa HDG steel power poles ,monopoles with AWS D1.1 for the Philippiness

Material : High strength low alloy structural steels

Anchor bolts : Customization Available

Surface treatment : Hot dip glivanized in accordance with ASTM A123 with thickness no less than 86μm

Design of pole : Against earthquake of 8 grade

Type : Steel powe pole, momopole

Contact Now

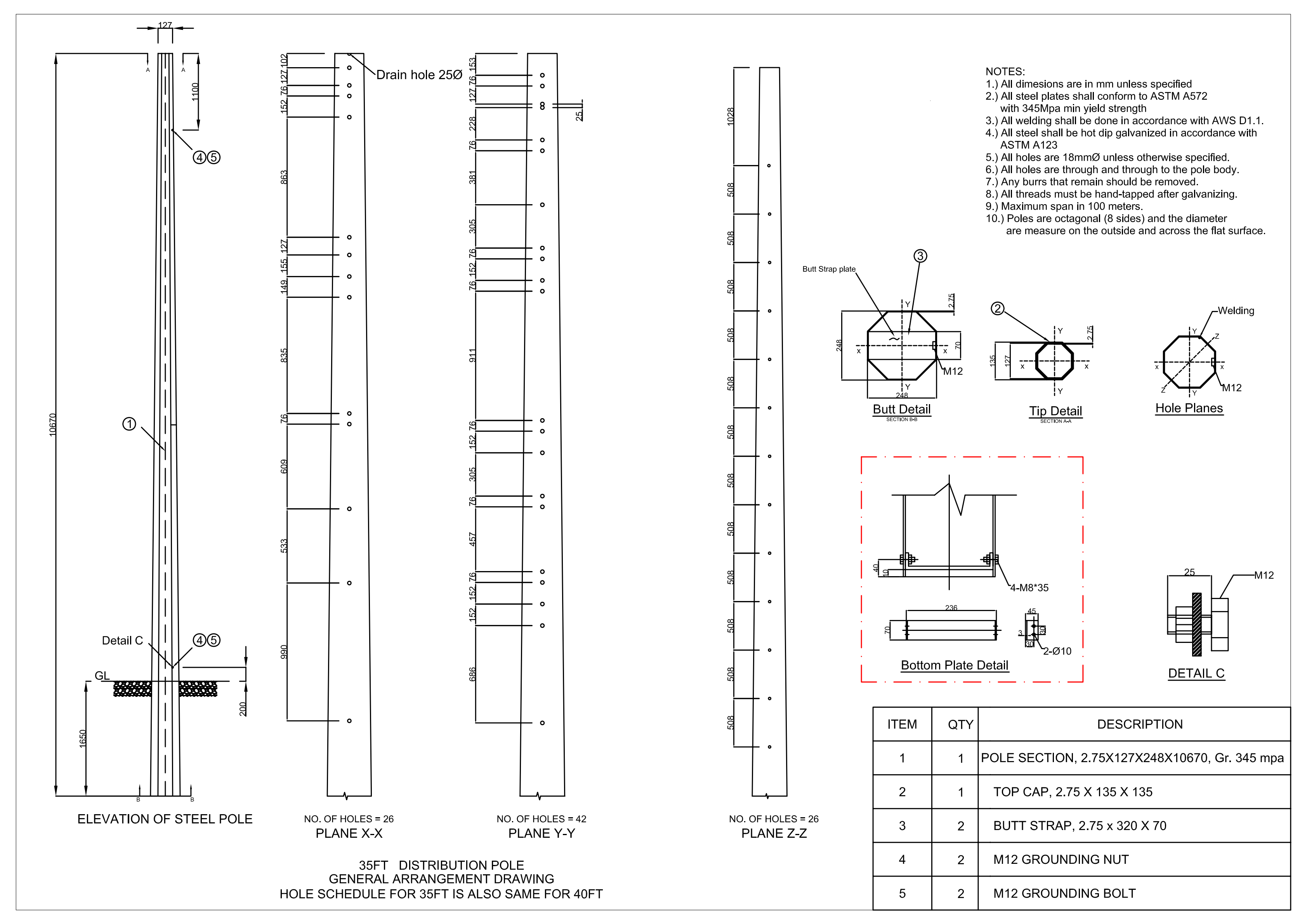

2.75*127*248*10670mm Gr,345 mpa HDG steel power poles ,monopoles with AWS D1.1 for the Philippiness

Type	Steel power pole,monopoles
Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	ASTM 572 Grade 50 with yieled strength no less than 345mpa ASTM 572 Grade 65 with yieled strength no less than 450mpa
Torlance of dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wire : 8 Safety factor for grounding wire : 8
Design Load in KG	300~ 1000 KG appliced to 50cm from the to pole
Marks	Name palte through rivert or glue ,engrave , emboss as per customer requirement
Surface Treatment	Hot dip glivanized in accordance with ASTM A123 with thickness no less than 86μm Color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode .
Design of Pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum Yield Strength	355 mpa
Minimum Ultimate Tensile Strength	490 mpa
Max Ultimate Tensile Strength	620 mpa
Standard	ISO 9001
Size	2.75127248*10670mm
Welding	We has past flaw testing. Internal and external double welding makes the welding beautiful in shape AWS ( American Welding Society ) D 1.1 with penatration rate no less than 80%-100%
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify → Flange welding →Hole drilling → Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packaging
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , Anyway also can following by client required , each 40HC or OT can loading How many pcs will calculation base on the client actually specification and data.

2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1

Our Service

1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Customized designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video.

WE ARE MANUFACTURER SINCE 1992

Experience: Our company was set up in 1992, having over 24 years of production experience in galvanized garden light poles.

Production Capacity: We manufacture galvanized garden light poles from 3M-35M at the capacity of 20,000 poles per month.

Production lines: For galvanized garden light poles we carry on vertical production to get good control of quality and cost

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line

2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1

ADVANTAGES

OEM&ODM service available

Great anti-corrosion performance

Long life time: 25 years long life span

BAOSTEEL Q235 steel, high strength and great resilience

Dual protection treatments: hot galvanized first and then powder paint

Multiple painting colors available: Default color Gray. Custom available

Dismountable arms and foundation kit: Only a screwdriver, requiring no welding

2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1
