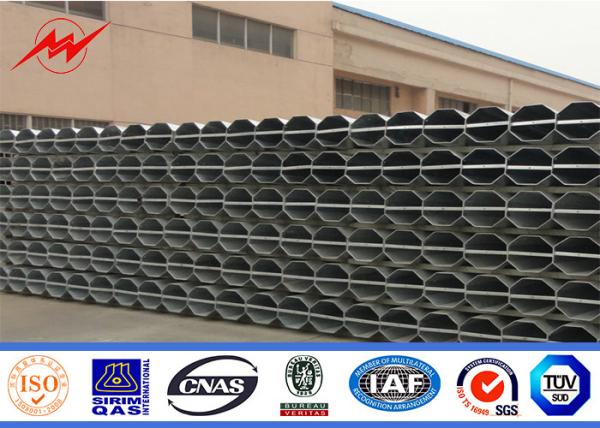

IP65 25ft 30ft 35ft 40ft Steel Power Pole

Brand Name : milky way

Model Number : Steel Power Pole

Certification : ISO9001:2015

Place of Origin : Jinagsu

MOQ : 500 pieces

Price : 130-180USD/pieces

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 per month

Delivery Time : 2 weeks always

Packaging Details : Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.

Feature : NEA 25FT 30FT 35FT 40FT

Application : electrical power transmission

surface treatment : hot dip galvanization

Thickness : 3mm 2.75mm

Protective level : IP65

shape : octagonal

Size : customized drawing

Voltage : 10-550kv

certification : ISO BV

Contact Now

NEA steel poles 25FT 30FT 35FT 40FT electric pole Steel Utility Pole

Features:

Pole’s height All available
Type Straight Pole ,Tensile Pole ,Turn Pole,etc
Shape of pole Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
Crossarm Single or double crossarm, dimension as per customers’ requirement
Material

Steel materials conform to ASTM A36,

Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50

Q460 equivalent to S460, Grade 65
Wall thickness ≥2.5mm
Once forming 13m without joint

Welding

Welding complies with CSA and AWS, AWS D1.1 standard.

The welders have got corresponding certificate after testing and inspection.
Joint Joint with insert mode, flange mode.
Base plate mounted Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.
Voltage 10KV~550KV
Certificates ISO9001-2008 , AAA credit rating, etc
Protection Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

Packing & shipping

We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

IP65 25ft 30ft 35ft 40ft Steel Power Pole

Our Servises:

1.Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.

IP65 25ft 30ft 35ft 40ft Steel Power Pole
